Cable Laying
The first stage in the installation of the HS1000 Tidal Turbine Generator (TTG) was to connect the umbillical piece (with bespoke connector) to the existing subsea cable. This would be
picked up later and connected to the TTG prior to its installation. The images below show the deck layout for the instalation vessel used, and the sequence of events.

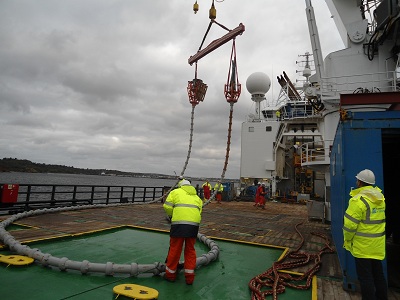

Loadout of Umbillical

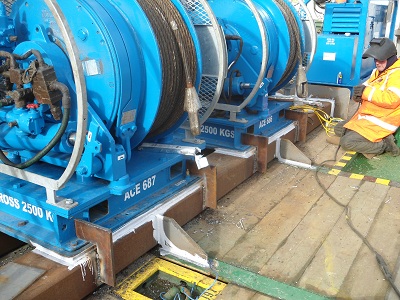

Winch Base Sea-fastenings Mobilisation
Loadout of overboarding Chute
The sub-sea cable end has been retrieved and the umbilical piece connected - and now made ready for re-deployment.
The umbilical tail end - with TTG connector - about to overboard

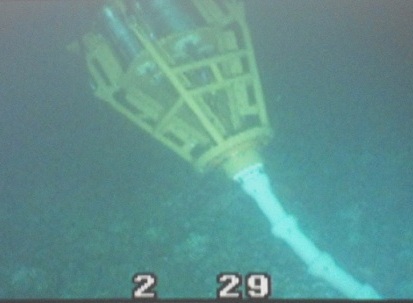

Sea bed touchdown
